CE 63A 6KA 4p MCB IEC60898 miniature circuit breaker

FOB Reference Price:Get Latest Price
$0.60 - $3.80 / Piece | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
sofielec
Model Number:
SJVM9-63A
Type:
Mini
Poles Number:
1p, 2p. 3p. 4p
Rated current:
1A-63A
Product name:
miniature circuit breaker price
Certificate:
CE CB ,SEMKO
Standard:
GB10963/IEC60898
Rated voltage:
230/400V
Breaking capacity:
6KA
Endurance:
10000
Rated frequency:
50/60 Hz
Mounting ways:
din rail pannel mounting
weisite:
www.sofielec.com
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
white box and standard export carton with lable( depand on customer's requirement
Port
Ningbo/ shanghai

CE 63A 6KA 4p MCB IEC60898 miniature circuit breaker

Product Description

.jpg



>> products show

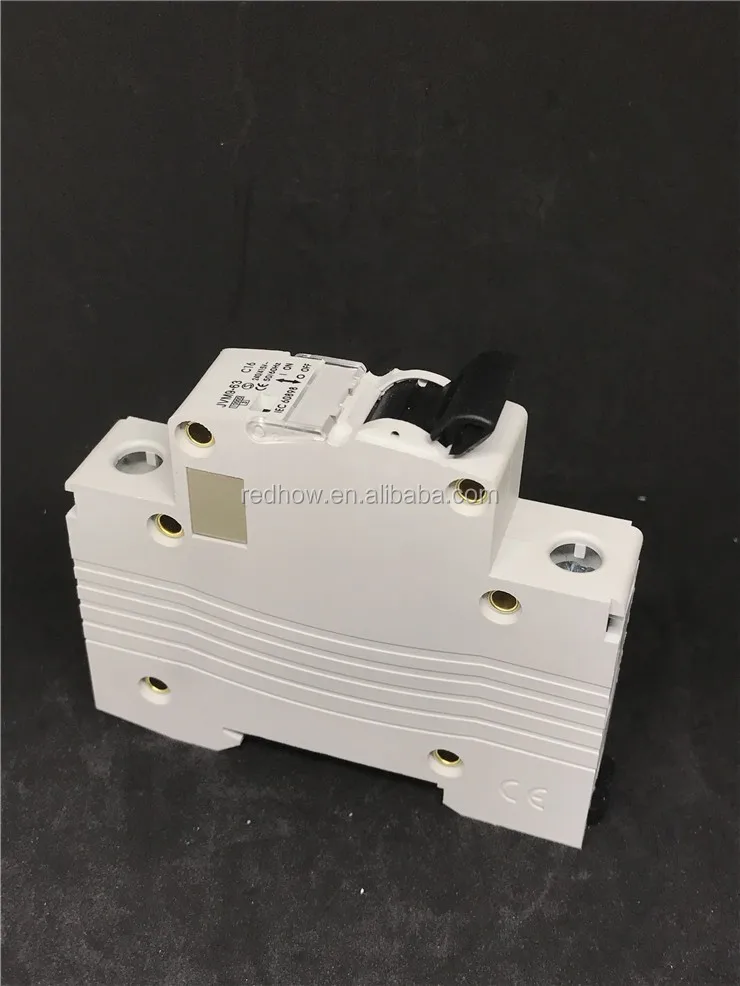

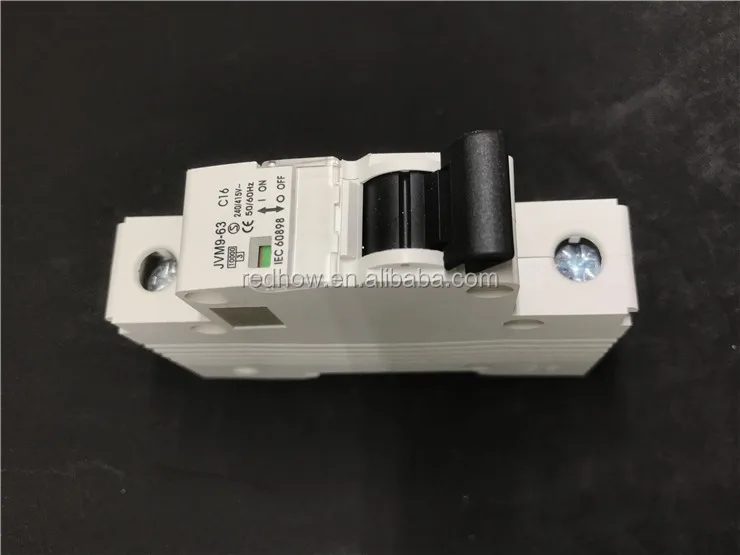

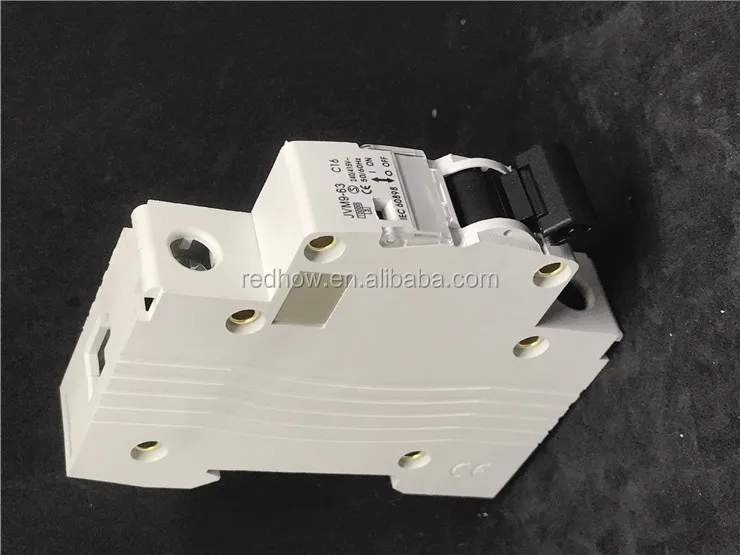

 miniature circuit breaker price



miniature circuit breaker price



miniature circuit breaker price



Construntion and Feature



1. Fine and unique appearance.
2. Short-circuit and overload dual-protection performance.
3. High-breaking capacity (6KA) that is leading among the world similar products.
4. Unique label, transparent window.
5. Convenient and reliable installation mode.

SJVM9-63 mcb Protection against overload and short circuit,6KA high short circuit , beautiful appearance with transparent window. The rated working voltage 24/415V. Completely rated current from 1 amp to 63 amp. Widely use for houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application.



Technical Data



Pole No.: 1P,2P,3P,4P
Rated Current (A)1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Rated VoltageAC 230/400V
Rated frequency 50/60Hz
Tripping Curve: B,C,D
High Short-circuit breaking capacity (Icn)10000A
Energy limiting class3
Rated impulse withstand voltage6.2kV
Electro-mechanical Endurance20000
Connection terminalPillar terminal with clamp
Connection capacityRigid conductor up yo 25mm²
Fastening torque2.0Nm
linstallationOn symmetrical DIN rail 35.5mm , Panel mounting
Terminal Connection Height21mm
Products Name : bkn c16 circuit breaker mcb
We are special

After-sales Service
1.All goods will be inspected and tested before shipment.
2.Customer's satisfaction is the most important thing to us. If you have any problems or questions, pls contact us by Trademanager or email. We will respond you within 24 hours.

What Can I Do For You
1.Quality & Service At Honghao, our 1st priority has always been providing our clients with great quality products and superior customer service.
2. Quick LeadTime We're dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.
3. Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings over to you! 4. Brand Awareness The goal of any strong brand is to achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
5. Special Offers In order to maintain our competitive edge, we are constantly running special offers on our products including Circuit breaker and fuse . Contact our sales team to see how we can help you save a lot of money.

We Are Together
Honghao is willing to work and develop together with worldwide agents and distributors.

Related Products


Company Information

Company Information.jpg



Honghao Electrical Technology Co., Ltd.



Honghao Electrical Technology Co., Ltd.ltd is located liushi Wenzhou China. Liushi is famous for the low and high voltage electrical products such as circuit breaker,ac contactor,Timer,relay,switch gear,there is the largest low-voltage electrical appliance market in China and about 15Km far away from Wenzhou Airport and Railway, the transportation is very convenient.



Our Company is specialized in manufacturing modular electrical terminal devices for household,economic and industry area installation. We have wide range of products covers Miniature circuit breaker(MCB), Residual current circuit breaker(RCCB),Residual current circuit breaker with over-current protection(RCBO), Switch-disconnect, Distribution box, High and low voltage switch gear and the accessories in the various type of switch boards,such as SPD,copper terminals,ac contactor,ampmeter etc.



Our company takes the repuation as the large supplier of electro-magnetic type RCCB and RCBO,OEM or ODM projects are available.The most important is above products pass the lab.test and obtained the approvals:CE(Europe),S(SEMKO Sweden),CCC(China),CB,SAA



workshop & Certified.jpg

Production process

Production process.png

1. we are 15 years professional manufacture full range of electrical products circuit breaker switch and distribution box.
2. We have 10 years experience in foreign trade service. Familiar with foreign trade process.
3. Our high quality products which have pass the test and get the certificate of CE, CB, SAA, Semko. KAMA approvl.
4. There is a Professional work team- we can accept OEM ODM production ability.
5. Intimate service that we offer 24 hours service. Solve all customer doubt in time.

Packaging & Shipping


FAQ


Q1:When can I get the price?
A1:We usually quote within 12 hours after we get your inquiry. if you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2:How can I get a sample to check your quality?
A2:After price confirmation, you can require for samples to check our quality.
If you just need a blank sample to check the design , we will provide you sample , as long as you afford the express freight.

Q3:Can you do the design for us?
A3:Yes. We have a professional team having rich experience in mcb/rccb design and manufacturing. Just tell us your ideas and we will help to carry out your ideas. It doesn't matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

Q4:How long can I expect to get the sample?
A4:After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-15 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

Q5:What is your terms of delivery?
A5:We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convinent or cost effective for you.
